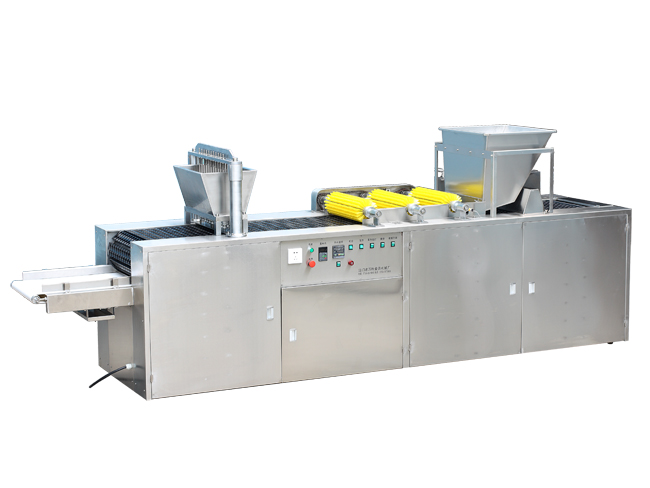

Automatic Cream Injection Machine for Hollow Biscuits
2019-04-09 1871
Technical parameters
1. Frequency converter:using XiAn Bosch rexroth. Other appliances adopt domestic brands
2. Productivity: 700 pcs/ min
3.Total power: 9 KW
4.power sources: AC380 V/50HZ
5.Compressed air: less than 0.4 MPA
6. Equipment weight: 1100 kg
7. Overall dimensions: (length *width* height ):3900*950*1500mm
8.conveyor belt:
Location hole size 32MM, diameter 26MM. Two specifications. (note that the biscuit cannot be greater than 30MM in diameter)
9 .The success rate of automatic loaves is about 80% - 100%.
10.Equipment structure: machine rotation and pneumatic combination.
11.Template materials: aluminum alloy. Number of templates: 86 pieces
12.Number of wool sweeps: 3.
13.Template size: 450mmx73mmmx13mm
14.Template positioning hole distribution: two rows, each row 11 holes
15,Equipment hopper: stainless steel 304.The seal plate outside are using Stainless steel 201
-
